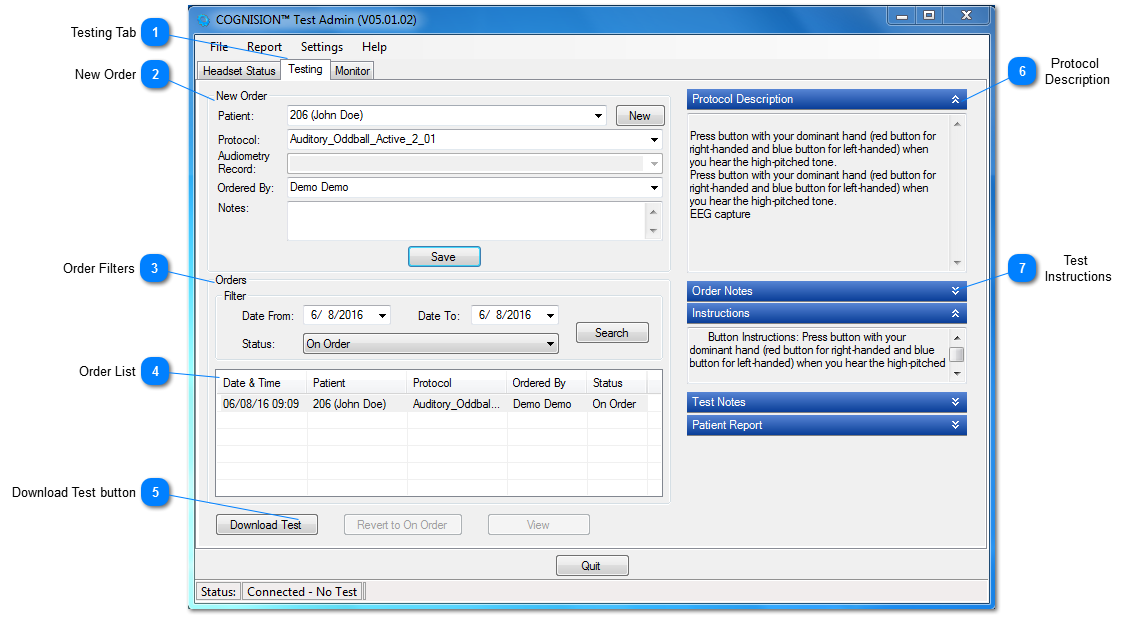

Select and Download the Test

Select and Download the Test
1
Testing Tab
1. Testing Tab
Click on the Testing tab to go to the test setup panel.
2

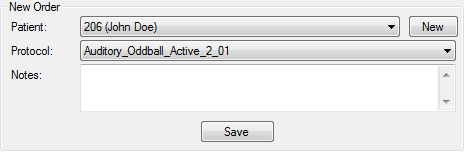

New Order
You will need to create a New Order to run a test.
3
Order Filters
Select the date range for which the test was ordered.
Then select Status "On Order" and click Search to list the tests which are available for download into the HCU.
4

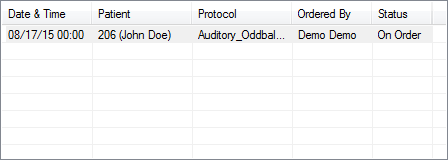

Order List
Select the desired test order from the list.
5
Download Test button
Click Download Test to send the test to the HCU.

NOTE:  If the battery is low, you will get the following message:

Click Yes to continue.

NOTE:  The HCU should be connected with status "Connected - No Test".

CAUTION:  If the HCU status is "Connected - Data Ready", a message will be displayed cautioning the user that downloading a new test will delete the data stored in the HCU.  Once deleted, it can not be recovered.  Before doing this, you should confirm that it is OK to delete the data.

CAUTION:  If the HCU status is "Connected - Test Ready", a message will be displayed cautioning the user that downloading a new test will delete the test currently in the HCU.  Once deleted, it can not be recovered.  Before doing this, you should confirm that it is OK to delete the test.

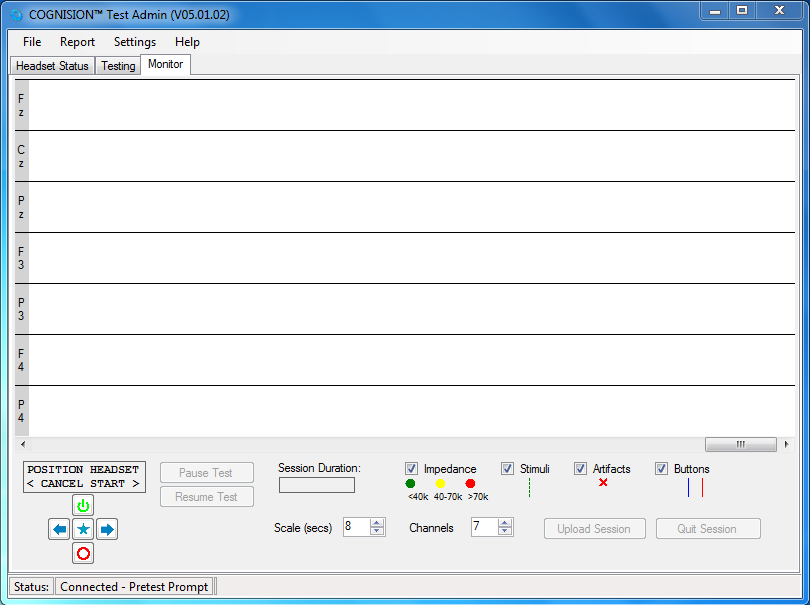

Once the test download is complete, the Test Admin module will switch to the Monitor tab.
6
Protocol  Description
6. Protocol Description
Displays a description of the test protocol.
7
Test  Instructions
7. Test Instructions
Displays instructions that are to be given to the test subject.
